YINK FAQ Series | Episode 2
Q1: What are the differences between YINK plotter types, and how do I choose the right one?
YINK provides two main categories of plotters: Platform Plotters and Vertical Plotters.
The key difference lies in how they cut the film, which affects stability, workspace requirements, and professional positioning of a shop.

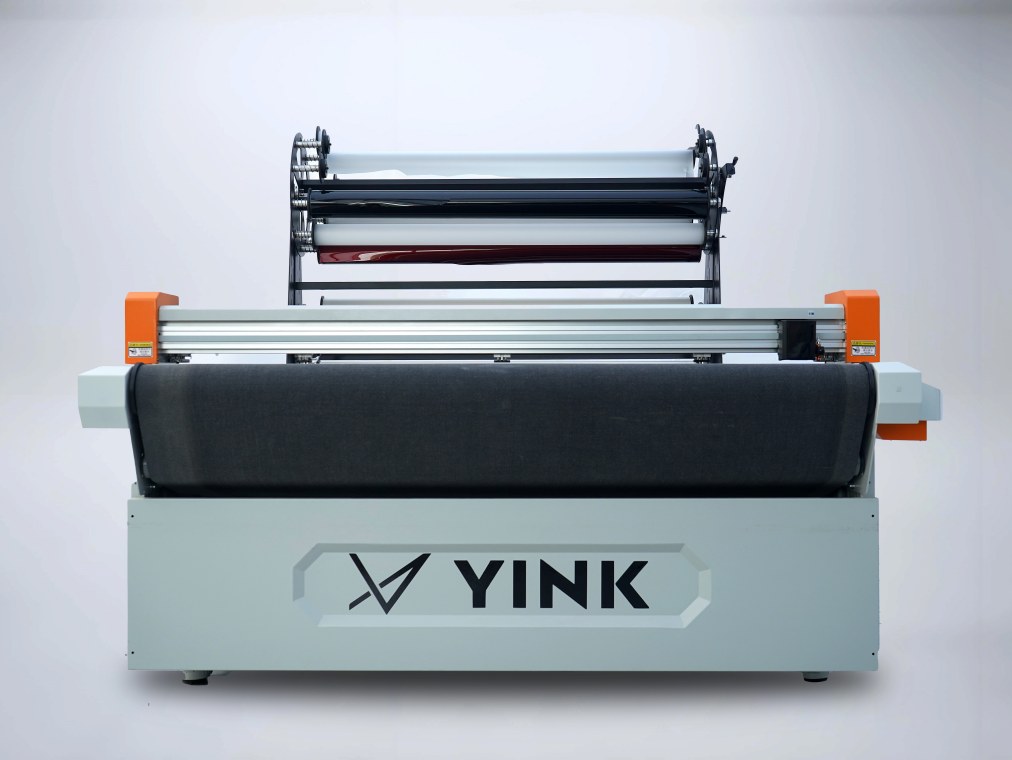

1. Platform Plotters (e.g., YINK T00X Series)
Cutting Mechanism:
The film is fixed on a large flat platform with clamps and an independent vacuum pump.
The blade head moves freely in four directions (front, back, left, right).
Cutting Process:
Platform machines cut in segments.
Example: with a 15m roll and a 1.2m platform width:
1.The first 1.2m is fixed and cut
2.The system secures the film again
3.Cutting continues section by section until the full roll is complete
Advantages:
①Very stable: the film stays fixed, reducing misalignment and cutting errors
②Independent vacuum pump ensures stronger suction
③Consistent precision, ideal for large and complex jobs
④Creates a more professional image for shops, especially when dealing with high-end customers
Best For:
Medium to large shops
Businesses that value cutting stability and professional presentation

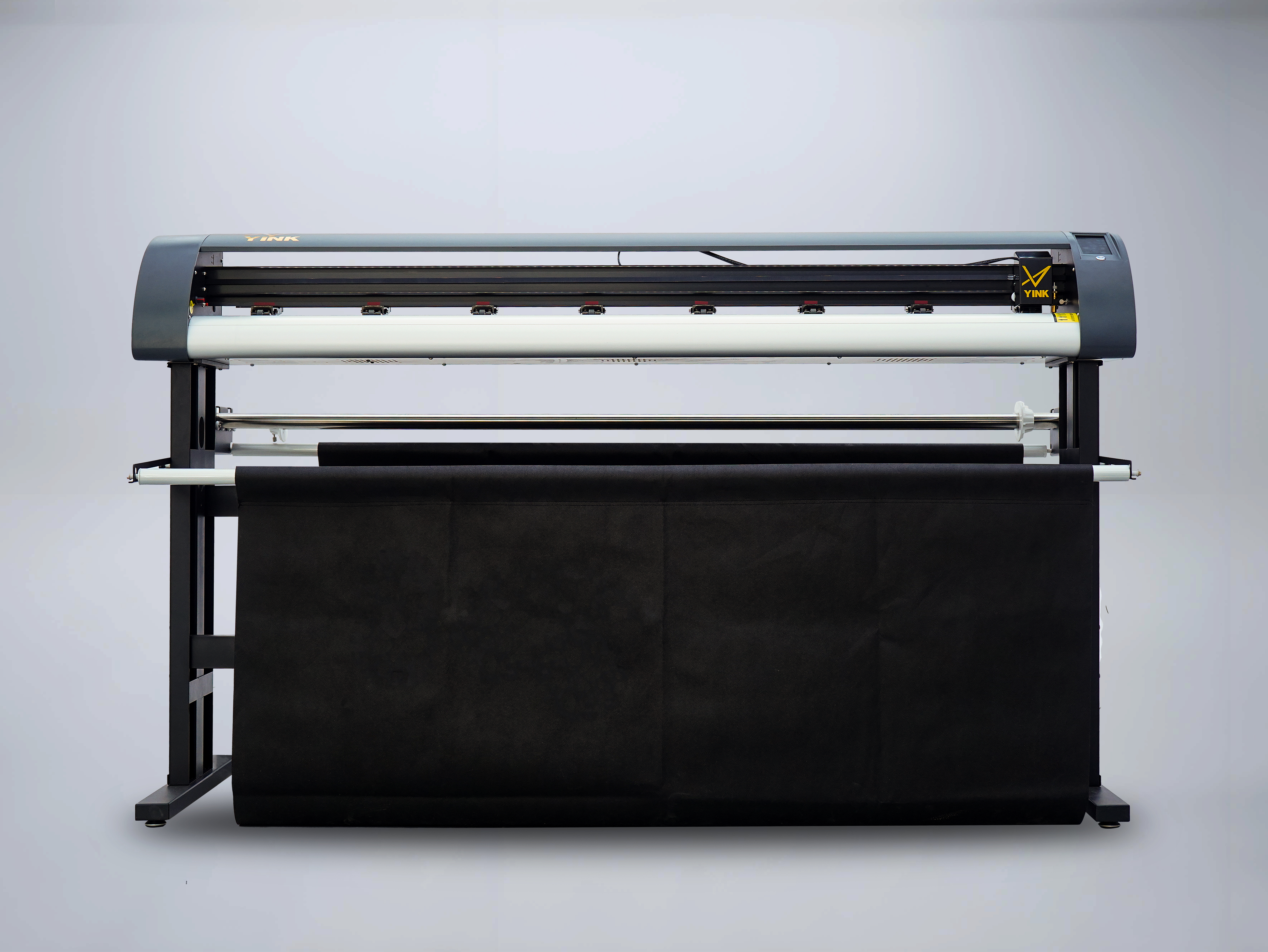

2. Vertical Plotters (YINK 901X / 903X / 905X Series)
Cutting Mechanism:
The film is moved forward and backward by rollers, while the blade moves side-to-side.
Vacuum Adsorption:
Vertical machines do not have an independent pump, but they still use suction on the working surface to keep film steady.
This keeps accuracy reliable and errors very low compared with machines without suction systems.
Model Differences:

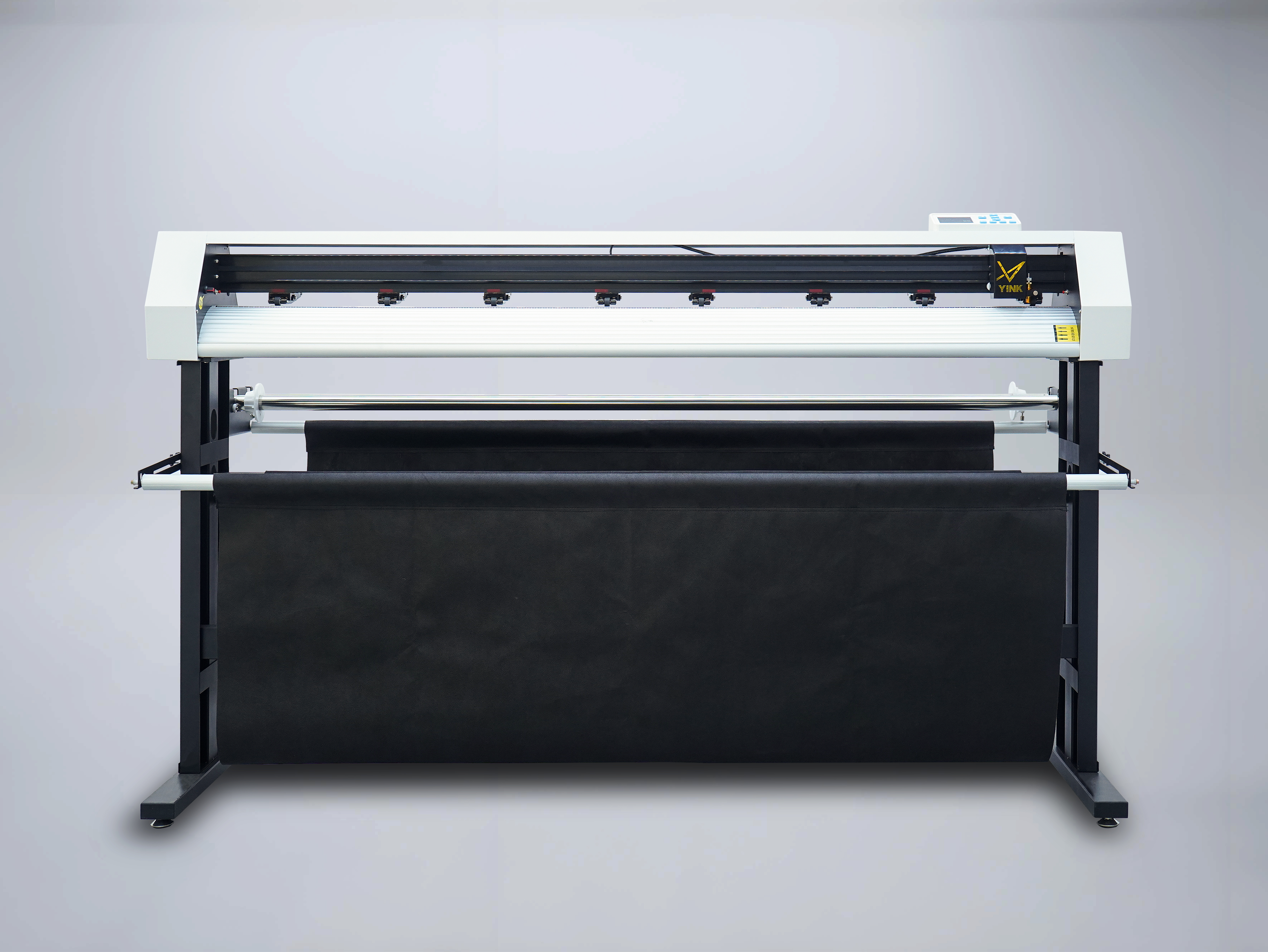

901X
Entry-level model
Cuts only PPF material
Best for new shops focused purely on PPF installation

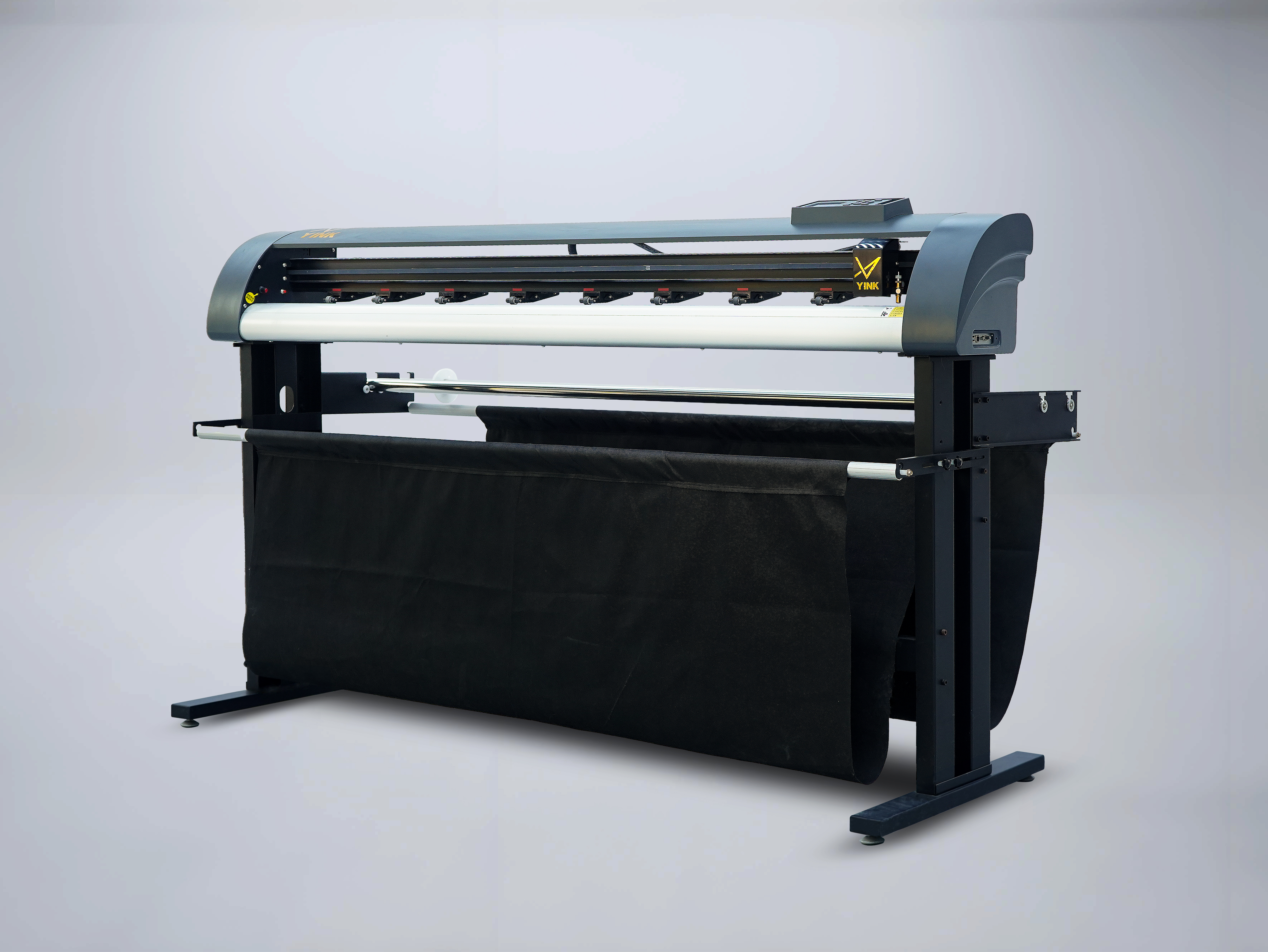

903X / 905X
Higher precision, supports PPF, Vinyl, Tint, and more
Suitable for shops offering multiple film services
The 905X is YINK’s most popular vertical model, offering the best balance of performance, versatility, and value
Best For:
Small to mid-size shops
Businesses with limited floor space
Customers who choose vertical plotters often prefer the 905X as the most reliable option
Important Note on Accuracy
Although the cutting process differs, all YINK plotters (platform and vertical) use vacuum adsorption technology.
T00X uses an independent vacuum pump
Vertical models use surface suction
This ensures stable cutting, minimizes misalignment, and gives users confidence regardless of model choice.
Comparison Table: Platform vs. Vertical Plotters
|
Feature |
Platform Plotter (T00X) |
Vertical Plotters (901X / 903X / 905X) |
| Cutting Mechanism | Film fixed, blade moves 4 directions | Film moves with rollers, blade moves side-to-side |
| Vacuum Adsorption | Independent vacuum pump, very stable | Surface suction, keeps film steady |
| Cutting Process | Section-by-section (1.2m each segment) | Continuous feed with roller movement |
| Stability | Highest, very low risk of skewing | Stable, low error rate with suction system |
| Material Capability | PPF, Vinyl, Tint, and more | 901X: PPF only; 903X/905X: PPF, Vinyl, Tint, more |
| Space Requirement | Larger footprint, professional image | Compact, requires less floor space |
| Best Fit | Medium–large shops, professional image | Small–mid shops; 905X is the most popular choice |
Practical Advice
If you want the highest stability and professional-grade setup, choose the Platform Plotter (T00X).
If you prefer a compact, cost-effective solution, choose a Vertical Plotter.
Among vertical models, the 905X is the most recommended option based on YINK’s global sales data.
For detailed specifications and technical parameters, visit the official product page:
YINK PPF Cutting Machines – Full Specifications
Q2: How do I correctly install and set up YINK software?
Answer
Installing YINK software is straightforward, but following the correct steps ensures smooth performance and avoids common errors. Below is a step-by-step guide to help you set up the software correctly from the beginning.
Step-by-Step Installation Guide
1. Download and Extract
Obtain the installation package from YINK or your sales representative.
After downloading, you will see a .EXE file.
⚠️ Important: Do not install the software on the C: drive. Instead, choose D: or another partition to avoid compatibility issues after system updates.
2. Install and Launch
Run the .EXE file and complete the installation process.
After installation, a YINKDATA icon will appear on your desktop.
Double-click the icon to open the software.
3. Prepare Before Logging In
YINK’s database includes both public data and hidden data.
If a vehicle model is not listed, you will need a Share Code provided by your sales representative.
Learn how to use Share Codes first — this ensures you can unlock hidden data when needed.
4. Request a Trial Account
Once you understand the basics, contact your sales representative to receive a trial username and password.
Paid customers will receive full access to the latest database and updates.

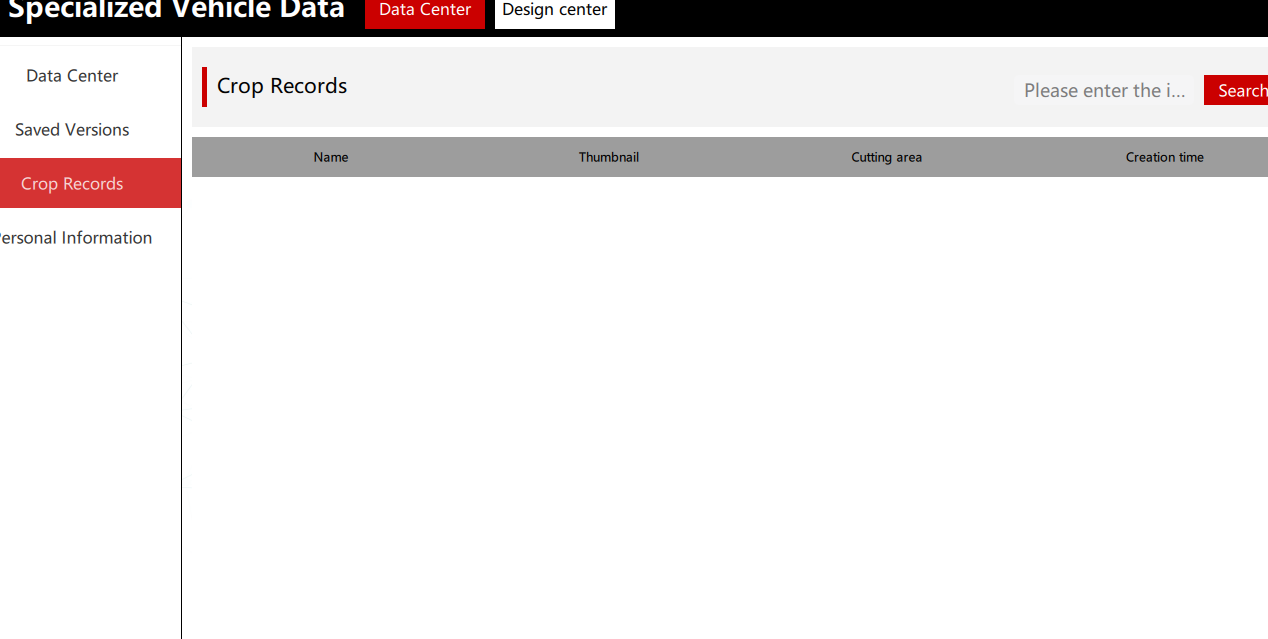

5. Select Cutting Type and Vehicle Model
In the Data Center, choose the vehicle year and model.
Double-click the model to enter the Design Center.
Adjust the pattern layout as needed.
6. Optimize with Super Nesting
Use Super Nesting to automatically arrange patterns and save material.
Always click Refresh before running Super Nesting to avoid misalignment.
7. Start Cutting
Click CUT → select your YINK plotter → then click PLOT.
Wait until the cutting process is fully completed before removing the material.
Common Mistakes to Avoid
Installing on C: drive → risk of errors after Windows updates.
Forgetting to install USB drivers → computer cannot detect the plotter.
Not refreshing data before cutting → may lead to misaligned cuts.

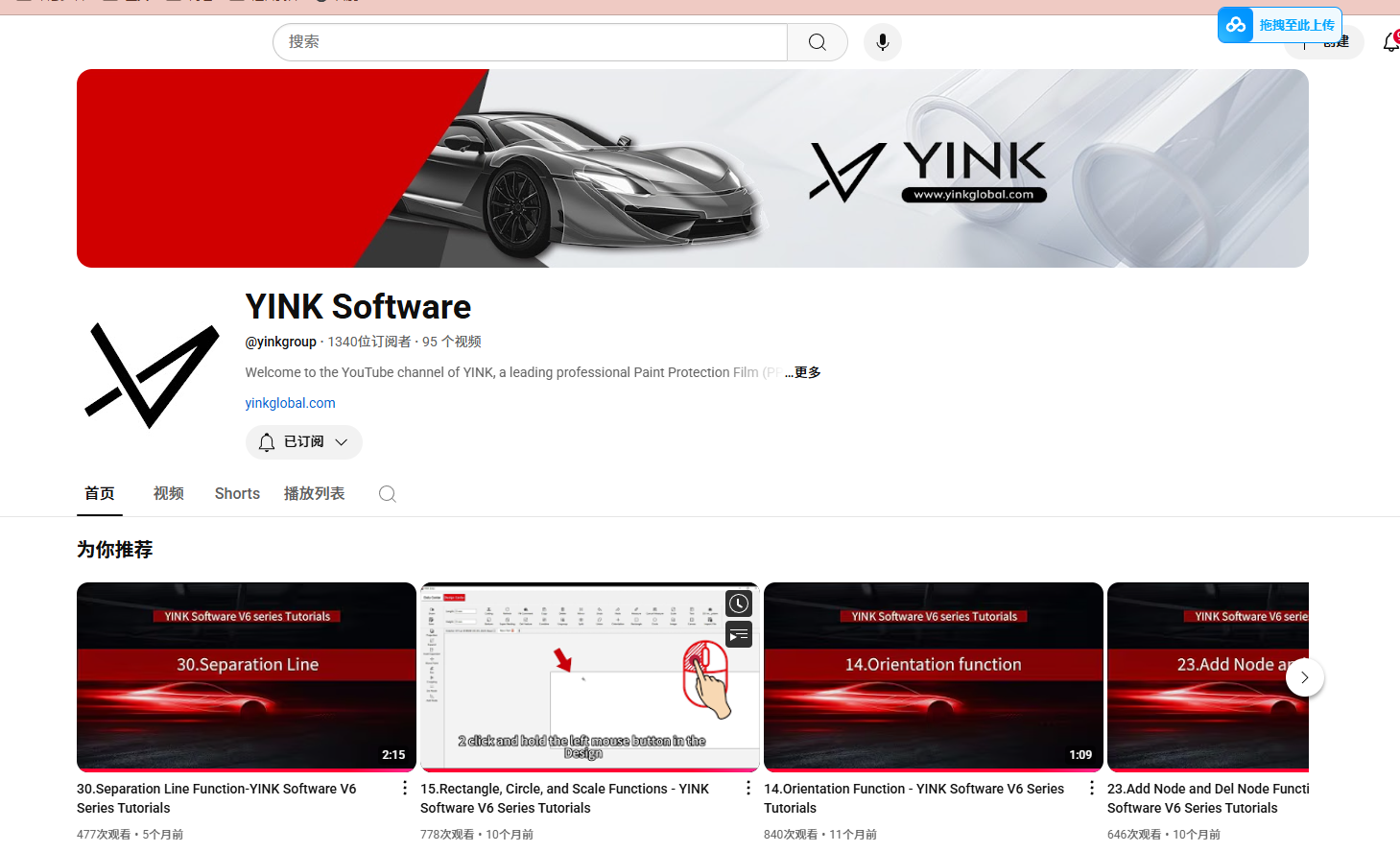

Video Tutorials
For visual guidance, watch the official tutorials here:
YINK Software Tutorials – YouTube Playlist
Practical Advice
For new users: start with small test cuts to confirm correct settings before full jobs.
Keep your software updated — YINK releases regular improvements to stability and features.
If you encounter problems, contact your sales representative or join the 10v1 customer support group for fast assistance.
Post time: Sep-01-2025
