First Time Using YINK? Why Do So Many Beginners Struggle with Cutting?——YINK FAQ Series — Episode 11
When many people first start using YINK,
they usually have the same feeling:
The software looks powerful,
the machine looks professional,
but once they actually start cutting,
something always feels a little off.
For example:
→ The film keeps shifting off track
→ The cutting size is inaccurate
→ The blade either doesn’t cut through or cuts through the backing paper
→ The software cannot connect to the machine
In most cases,
the problem is not the machine itself.
It’s usually because a few basic setup steps were skipped in the beginning.
This FAQ is designed to help new users understand the most common mistakes all at once.
1: What Should You Do First When Opening YINK Software?
When many users open YINK for the first time,
their first reaction is usually:
“There are too many functions and too many buttons.
I don’t even know where to start.”
Actually, this is completely normal.
Because YINK is a professional PPF pre-cut software system that includes:
→ Vehicle pattern database
→ Graphic editing
→ Automatic nesting
→ Cutting output
→ Multiple material support
So when using it for the first time,
don’t rush into cutting immediately.
One of the most common beginner mistakes is:
Installing the software and starting cutting right away.
Then problems appear:
→ Incorrect size
→ Film misalignment
→ Layout issues
→ Cannot find vehicle models
→ Output problems
And finally, users think the machine or software is defective.
But in reality,
most of these problems happen because the basic setup was not completed properly.
Before using YINK for the first time,
it’s recommended to complete these 3 steps first.

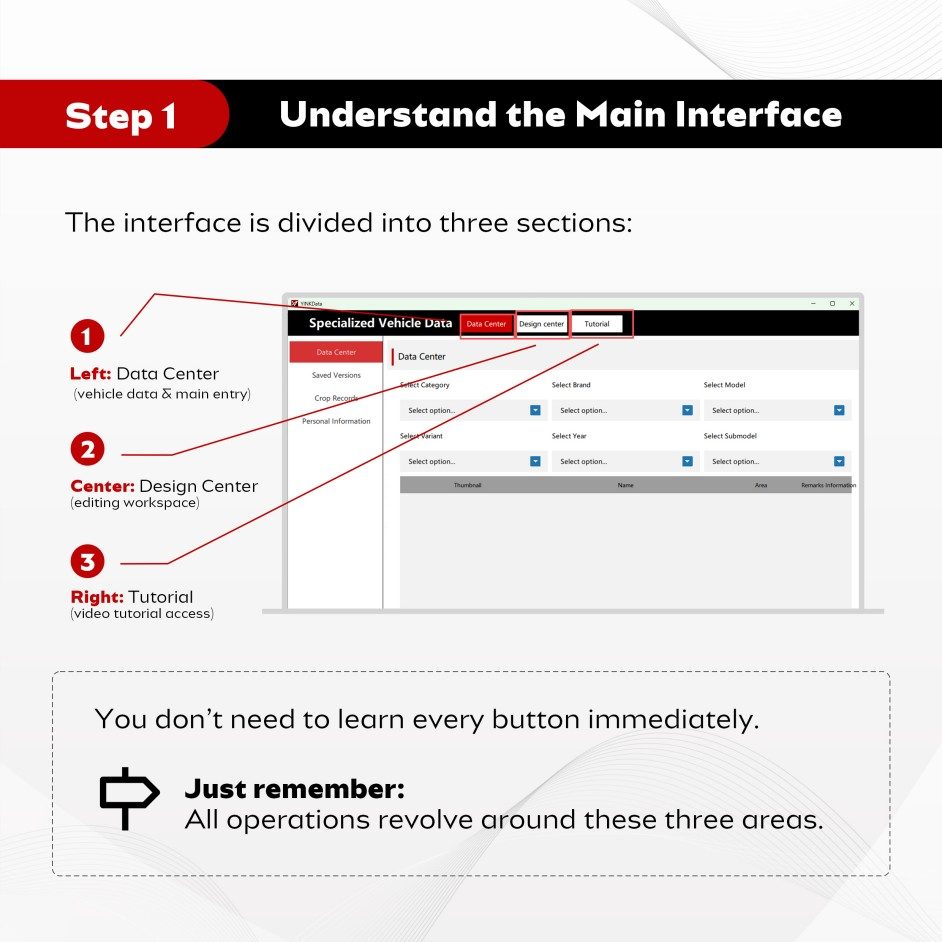

① Understand the Interface Structure
The YINK interface is actually not complicated.
The main workspace is divided into three sections:
Left Side: Data Center
This section mainly includes:
→ Vehicle model data
→ Function access
→ Data categories
→ Pattern selection area
Simply put:
This is where you find data.
Whether you are working with:
→ PPF
→ Color change film
→ Window tint
→ Interior film
Everything usually starts here.
Many beginners cannot find vehicle patterns simply because they are not familiar with the Data Center categories.
Middle Section: Design Center
This is the core working area of the software.
Almost all editing operations happen here.
Including:
→ Pattern adjustment
→ Deleting parts
→ Edge expansion
→ Splitting patterns
→ Layout arrangement
→ Automatic nesting
You can think of this as:
“The real working area.”
The final cutting result is often directly related to the adjustments made here.
Right Side: Tutorial
Many users ignore this section.
But actually,
it is extremely important for beginners.
Because it directly links to the official tutorial videos.
Whenever you encounter something you don’t understand,
you can quickly watch the related tutorial.
Especially for:
→ Layout settings
→ Output settings
→ Parameter adjustments
→ Machine connection
Most beginner issues are already covered in the tutorials.
When using YINK for the first time,
you do not need to study every single button immediately.
You only need to remember one thing:
Almost all operations revolve around these three sections.
Once you understand the overall workflow,
learning the software becomes much easier.

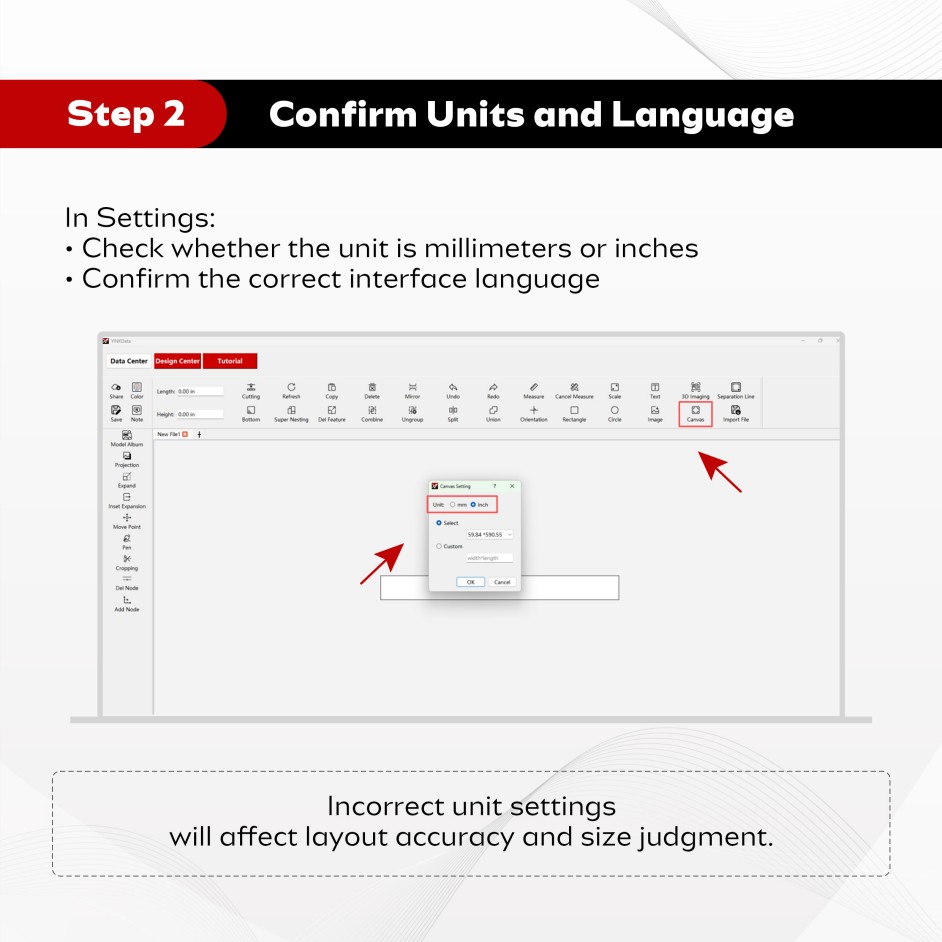

② Check the Unit Settings
This is one of the easiest things for beginners to overlook.
And once the unit setting is wrong,
almost every size afterward will become incorrect.
The most common issue is:
Incorrect unit settings.
For example:
The software is set to inches,
but the customer is actually using millimeters.
As a result:
The pattern itself is correct,
but the final cut size becomes completely inaccurate.
Most people immediately assume:
→ The data is inaccurate
→ The machine has an error
→ The software has a problem
But in reality,
the unit setting was simply incorrect.
After installation,
you should first confirm whether the current unit is:
→ mm (millimeters)
or
→ inch (inches)
In most regions,
using mm is recommended because it makes size adjustments easier and more intuitive.
There is another detail many users overlook:
Check the language setting as well.
Sometimes the default system language does not match the user’s habits.
This can lead to:
→ Difficulty finding functions
→ Confusion with parameters
→ Operational mistakes
Especially for first-time users,
the language setting can greatly affect learning efficiency.
Do not underestimate this step.
Many cutting problems during the first use
are actually not cutting problems at all.
They are simply caused by incomplete basic setup.

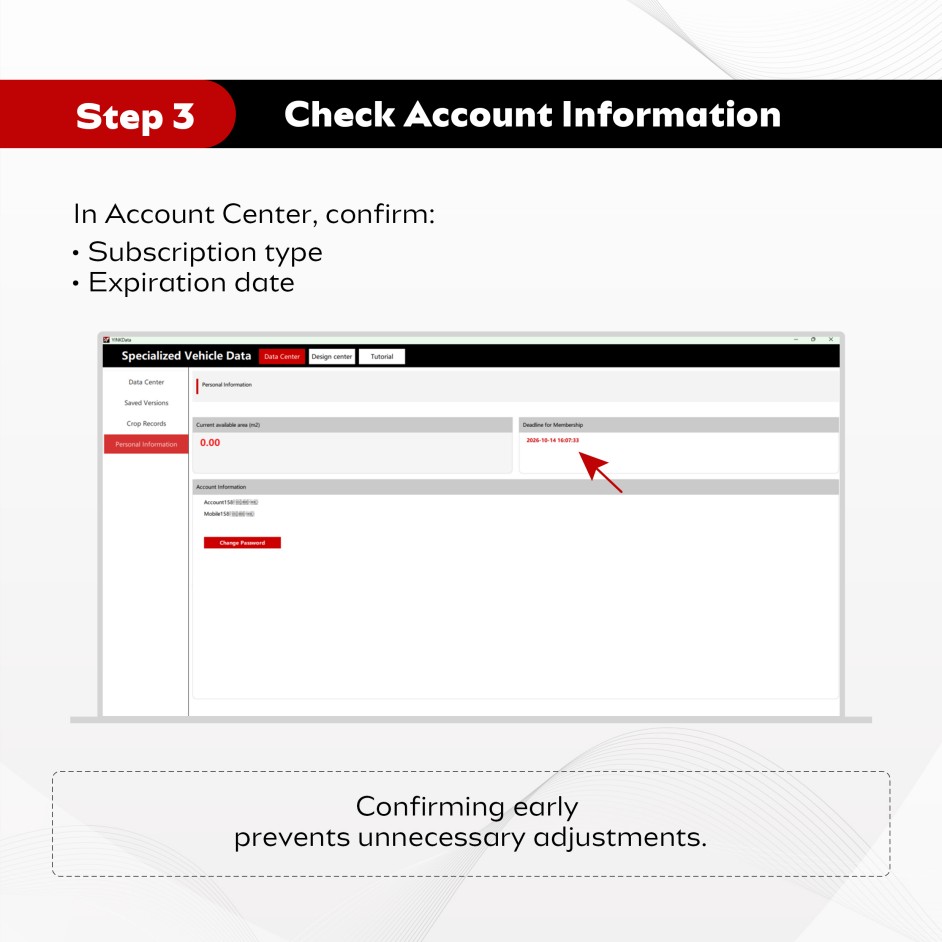

③ Check Your Account Status
Another detail that is often overlooked is:
Account status
Many users install the software and then discover:
→ Data cannot be opened
→ Some functions are unavailable
→ The software shows restrictions
→ Output does not work properly
Their first reaction is usually:
“The software is broken.”
But in many cases,
the account simply has not been properly activated.
After entering the Account Center,
it’s recommended to confirm the following information:
Current Subscription Version
Different versions support different functions.
For example:
→ Free Version
→ First Month Version
→ Standard Version
→ Premium Version
Some advanced functions are only available in higher-level versions.
Expiration Date
Many users forget that accounts have time limits.
Especially trial accounts.
Once the account expires,
some functions may stop working.
Activation Status
This is also extremely important.
Sometimes:
→ Logging into the account
≠
→ Successfully activating the account
So before using the software for the first time,
always make sure the authorization status is normal.
Checking your account information in advance
can prevent many unnecessary problems later.
Because many so-called “software issues”
eventually turn out to be:
Simply an unchecked account status.
2: Why Does the Machine Keep Running Off Track?
This is one of the most common problems for new users.
In most cases,
it is related to film loading.
The correct method is:
→ Keep the film edge close to the first pinch roller(Approaching the Sports Car Section)
→ Use as many pinch rollers as possible
There is another very important point:
Never peel the liner paper directly on the machine.
Because static electricity can become extremely strong
and may damage the motherboard.
Many beginners encounter this issue during their very first use.
If grounding is unavailable on-site,
you can make a simple grounding solution using:
→ 5 liters of water
→ 250g salt
Place the ground wire into the prepared saline bottle.
This detail is actually very important.
3: Why Doesn’t the Blade Cut Properly, or Why Does It Cut Through the Backing Paper?
In most cases,
the blade pressure is not adjusted correctly.
YINK officially recommends:
Beginner Blade Pressure: 160–200
At the same time:
→ Test once in the center
→ Test both sides as well
The correct result should be:
✅ The film peels off easily
✅ The backing paper remains uncut
Another important tip:
Beginners should not use excessive cutting speed.
Recommended speed:
Around 300
Many users immediately use maximum speed,
which actually increases cutting errors.
4: Which Machines Are Compatible with YINK Software?
YINK software has very high compatibility.
According to official information:
It supports 99.9% of PPF cutting plotters.
So there is no need to worry too much about machine brands.
Of course,
when paired with YINK’s own plotters,
overall stability becomes even better.
Current main models include:
→ YK-901X BASIC
→ YK-903X PRO
→ YK-905X ELITE
→ YK-T00X
The main differences between these models include:
→ Multi-material support
→ Processor performance
→ Positioning system
→ Film suction system
5: Which Machine Is Most Recommended for Beginners?
If the budget allows,
the most recommended model is:
YK-905X ELITE
The reason is simple:
It is currently the best-selling model.
Advantages include:
→ Faster cutting speed
→ More powerful processor
→ Full material cutting support
→ More accurate positioning
→ More stable automatic suction system
For long-term shop users,
it can save a lot of time and trouble.
6: Does YINK Provide Tutorials?
Yes.
YINK already provides a complete set of video tutorials.
Including:
→ Software installation
→ Layout arrangement
→ Cutting operations
→ Parameter adjustments
→ Troubleshooting
Tutorial entrance:
YINK Official Tutorial Channel
Summary
Many people think YINK is “too complicated” when using it for the first time.
But in reality:
The most important things
are simply the basic setup steps in the beginning.
Especially:
→ Film loading
→ Blade pressure
→ Layout settings
→ Unit settings
→ Alignment operations
Once these are done correctly,
everything afterward becomes much smoother.
If this is your first time using PPF pre-cut software,
don’t rush into real installation work immediately.
Practice with test film first.
Once you become familiar with the workflow,
your efficiency will improve very quickly.
Post time: May-27-2026
