Before Cutting PPF in YINK Design Center, Check These 5 Things—YINK FAQ Series — Episode 24
Once your vehicle patterns are arranged in YINK Design Center, it can be tempting to send the job to the cutting machine immediately.
But before cutting, one final check is worth doing.
Many cutting problems do not begin with the machine itself. They can start earlier in the workflow: the wrong vehicle data may have been selected, the layout direction may be incorrect, the measurement unit may not match your workflow, or an unnecessary pattern may still be included.
Once the film has been cut, these small setup mistakes can turn into wasted material and extra work.
That is why a good cutting workflow should always include one final review:
Check first. Cut second.
Before starting the cutting job, check these five things in YINK Design Center.

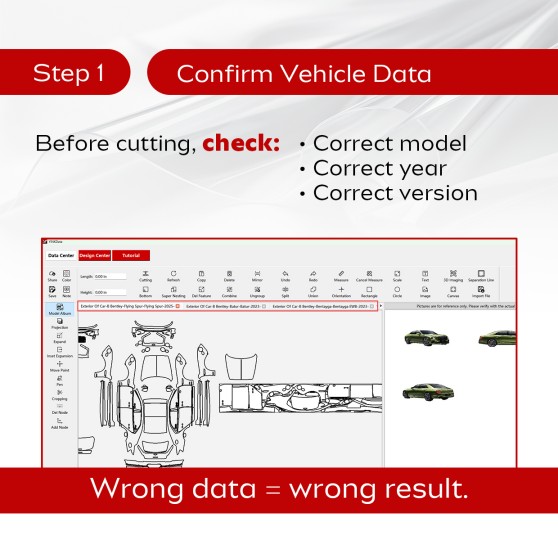

1. Confirm the Correct Vehicle Data
Start with the most basic question:
Are you cutting the correct vehicle data?
Before sending the patterns to the cutting machine, confirm:
→ Correct vehicle model
→ Correct model year
→ Correct version
This may sound obvious, but it is one of the most important checks in the entire workflow.
Similar vehicle models can have different years or versions, and their body parts may not use exactly the same patterns.
If the wrong data was selected at the beginning, cutting accuracy alone cannot correct the mistake.
The cutting machine can accurately follow the pattern it receives, but that pattern still needs to be the correct one for the vehicle.
So before checking the details of your layout, start by confirming the data itself.
Correct cutting starts with correct vehicle data.

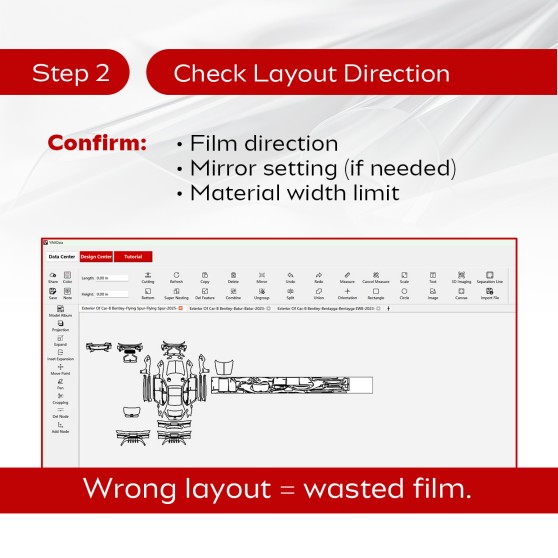

2. Check the Layout and Film Direction
Once the vehicle data is confirmed, review how the patterns are arranged on the material.
Check three things:
→ Is the film direction correct?
→ Does the pattern need to be mirrored?
→ Does any pattern extend beyond the available material width?
These details should be checked before cutting, not after.
For example, if a pattern extends beyond the usable width of the material, part of the pattern may not be cut as expected. If a pattern needs to be mirrored for the current job, that should also be confirmed before sending it to the machine.
Take a moment to look at the complete arrangement and make sure it matches the film you are preparing to use.
A layout may look organized on the screen, but it still needs to match the actual material.
Correct data + incorrect layout can still lead to wasted film.

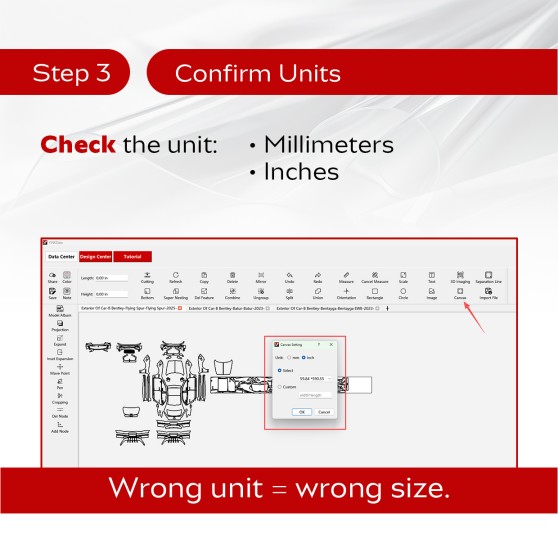

3. Confirm the Measurement Unit: Millimeters or Inches
Next, check the measurement unit.
YINK Design Center can involve workflows using:
→ Millimeters
→ Inches
Before cutting, make sure the current unit is the one you expect to use.
This becomes especially important whenever dimensions have been checked or adjusted during the preparation process.
If you think you are working with one unit while the software is using another, your understanding of the dimensions will be incorrect.
So add a quick unit check to your pre-cut routine:
Is the current measurement unit correct — mm or inch?
It only takes a moment to confirm, but it removes one more possible source of size-related mistakes before cutting.

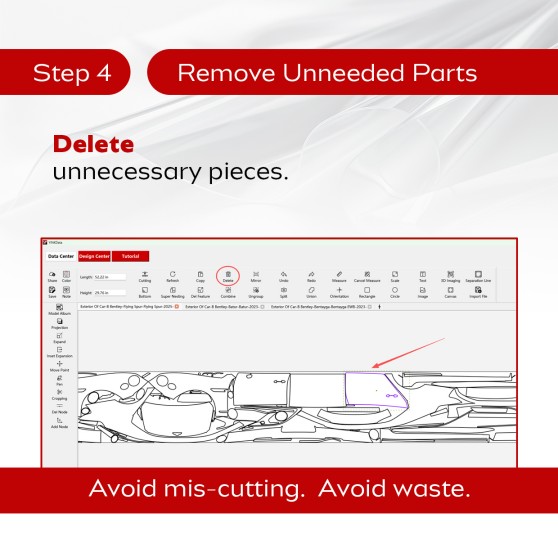

4. Remove Any Parts You Don’t Need
A complete vehicle template may contain more parts than the current installation actually requires.
Before cutting, look at the canvas again and make sure there are no unnecessary patterns left in the job.
If you find one:
Select the unwanted part → Delete
Do not leave unnecessary pieces on the canvas just because they were included in the original vehicle template.
If the customer only needs specific panels, only the required patterns should remain in the cutting job.
Removing unused parts helps prevent two simple problems:
→ Cutting something you did not intend to cut
→ Using film for a part that is not required
This is why cleaning the canvas is not only about making the Design Center easier to view. It is also part of the final cutting check.
Only keep what you actually need to cut.

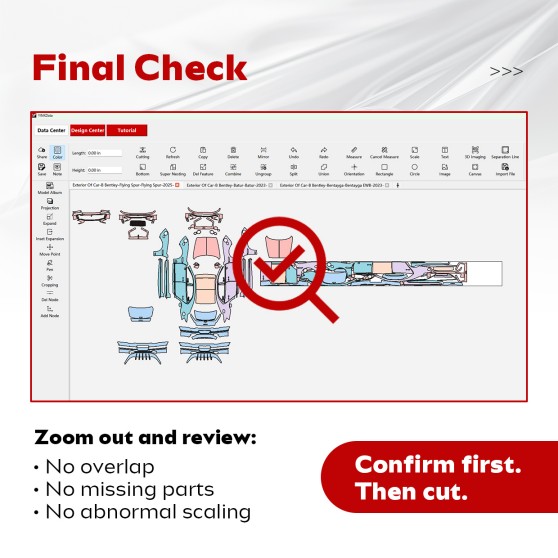

5. Zoom Out and Perform One Final Check
Now you are almost ready to cut.
Before starting, zoom out and look at the entire layout one more time.
Do not focus on one individual pattern.
Look at the whole job.
Confirm:
→ No overlapping patterns
→ No missing parts
→ No abnormal scaling
This final overview can help you notice something that was easy to miss while working closely on individual patterns.
For example, a small part may have been left behind, two patterns may overlap, or one pattern may look unusually large or small compared with the rest.
If something looks unusual, stop and check it before cutting.
The purpose of this final review is simple:
Make sure the layout looks correct as a complete cutting job, not just as a collection of individual patterns.
Once everything looks normal, you can proceed with the cut.

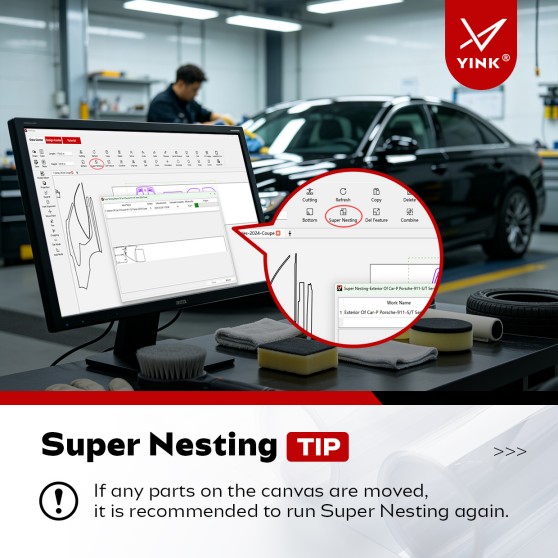

One More Thing: Run Super Nesting Again After Moving Parts
There is one more detail worth remembering.
If you move parts on the canvas after the layout has already been arranged, it is recommended to run Super Nesting again before cutting.
Why?
Because once pattern positions have changed, the previous arrangement is no longer the same.
Running Super Nesting again gives you an opportunity to reorganize the updated set of patterns before the job is finalized.
A simple habit is:
Moved a part? Check the layout again.
If necessary:
Move → Super Nesting → Final Check → Cut
This keeps the final layout consistent with the changes you have just made.
A Simple Pre-Cut Checklist
You do not need a complicated inspection before every cutting job.
The important thing is to develop a consistent routine.
Before cutting, ask yourself:
| Check | What to Confirm |
|---|---|
| Vehicle Data | Correct model, year, and version |
| Layout | Correct film direction, mirror setting, and material width |
| Unit | Correct millimeter or inch setting |
| Parts | No unnecessary patterns remain |
| Final View | No overlap, missing parts, or abnormal scaling |
If any parts were moved after arranging the layout, remember to consider running Super Nesting again before the final check.
The complete workflow is easy to remember:
Vehicle → Layout → Unit → Parts → Final Check → Cut
Why a Pre-Cut Check Matters
When working with PPF patterns, it is much easier to correct something while it is still on the screen than after the material has already been cut.
If you find the wrong vehicle version before cutting, you can change it.
If you notice an unnecessary pattern, you can delete it.
If the layout exceeds the material width, you can rearrange it.
If something looks wrong in the final overview, you can stop and inspect it.
Once cutting begins, however, some mistakes may already mean wasted material or repeated work.
That is why a pre-cut check should not be treated as an unnecessary extra step.
It is simply part of a more reliable workflow.
Conclusion
Before starting a PPF cutting job in YINK Design Center, take a moment to review the complete setup.
Remember these five checks:
→ Confirm the correct vehicle model, year, and version.
→ Check the film direction, mirror setting, and material width.
→ Confirm whether you are working in millimeters or inches.
→ Delete any parts you do not need.
→ Zoom out and check for overlap, missing parts, or abnormal scaling.
And if you have moved parts after arranging the layout, consider running Super Nesting again before the final check.
A short review before cutting can prevent much more time being spent correcting avoidable problems later.
Check first. Cut second.
FAQ
What should I check before cutting PPF in YINK Design Center?
Check the vehicle model, year and version, layout direction, measurement unit, required parts, and the overall layout before starting the cut.
Why should I zoom out before cutting?
Zooming out lets you review the entire cutting job at once. Check for overlapping patterns, missing parts, and any pattern with an abnormal scale.
What should I do if I move a pattern after using Super Nesting?
If parts on the canvas have been moved, it is recommended to run Super Nesting again and then perform another final check before cutting.
Should I delete unused vehicle parts before cutting?
Yes. Remove parts that are not required for the current job to reduce the risk of cutting unnecessary patterns and wasting material.
