Use Your Mouse Better in YINK Design Center: 4 Simple Tips——YINK FAQ Series — Episode 23
When working in YINK Design Center, efficiency is not only about knowing which tools to use. Basic mouse habits can also make a noticeable difference in how smoothly you work.
Two users can work with the same vehicle data and the same software, but one may finish arranging patterns much faster. Often, the difference comes from simple actions: how they select patterns, how they move the canvas, and when they zoom in or out.
For beginners, learning these basic controls early can reduce repeated adjustments and make a crowded workspace much easier to manage.
The key principle is simple:
Clear view first. Then operate.
Here are four basic mouse techniques worth learning in YINK Design Center.

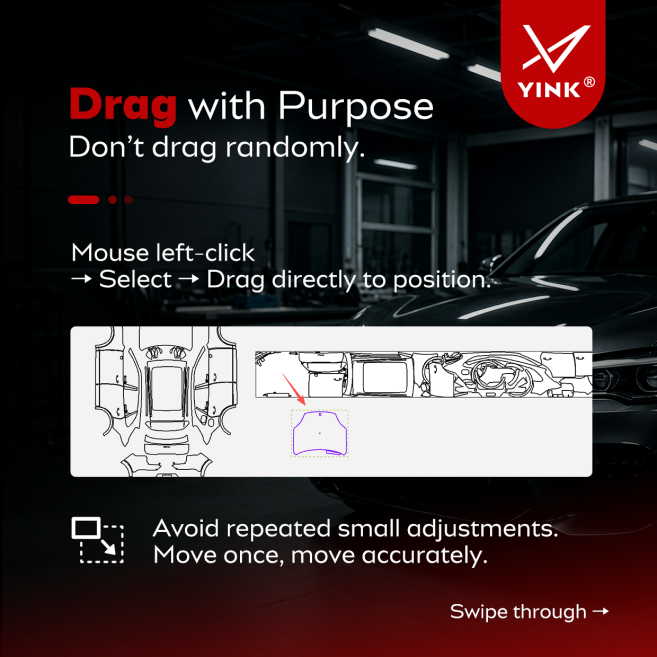

Tip 1 — Drag with Purpose, Not Repeatedly
A common beginner habit is moving the same pattern several times.
You drag it a little, stop, adjust again, and then move it once more.
For a single pattern, this may not seem like a problem. But when a vehicle template contains many parts, repeated small movements can make the entire layout process slower and more confusing.
Instead, use a more deliberate sequence:
Left-click → Select → Drag to the intended position
Before dragging, look at where the pattern is and where you want it to go. Then try to move it directly into position instead of making many small adjustments.
A useful habit is:
Look first. Select. Then move with a clear destination.
You can always fine-tune the position later if necessary, but your first movement should have a purpose.

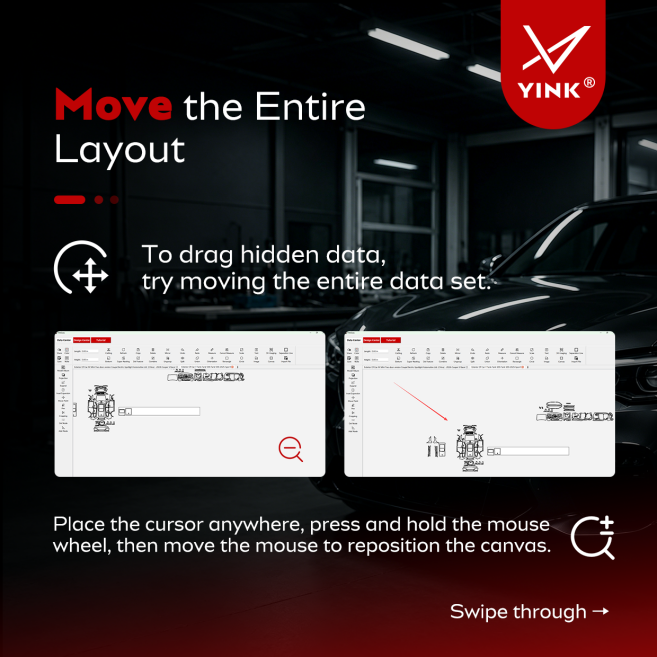

Tip 2 — Move the Entire Canvas When Parts Are Out of View
Sometimes the problem is not the position of an individual pattern.
The data you need may simply be outside the current visible area.
In this situation, repeatedly dragging individual vehicle parts is not the right approach. Instead, move the overall view so you can bring the hidden data back into sight.
In YINK Design Center:
Place the cursor anywhere → Press and hold the mouse wheel → Move the mouse
This allows you to reposition the overall canvas view until the area you need becomes visible.
This is an important distinction for beginners:
Left mouse button: Select and move an individual pattern.
Hold the mouse wheel: Move the overall canvas view.
Once you understand the difference, navigating a large set of vehicle patterns becomes much easier.
If something is outside your current view, you do not necessarily need to change the pattern itself.
Sometimes, you only need to change what part of the canvas you are looking at.

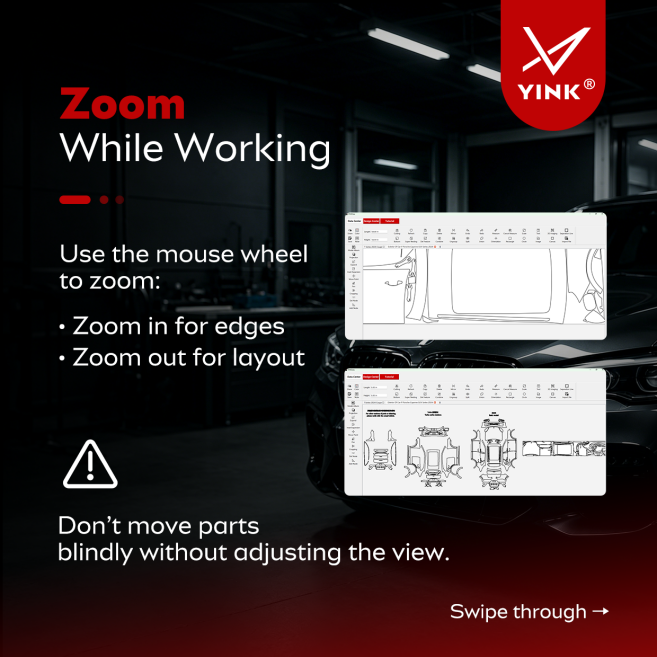

Tip 3 — Zoom In and Out While You Work
The mouse wheel is also useful for controlling how much of the workspace you can see.
Do not try to complete every task at the same zoom level.
Different operations need different views.
Zoom In When You Need to See Details
When you need to look more closely at a specific pattern or its edges, zoom in.
A closer view makes it easier to understand what you are selecting and adjusting.
Zoom Out When You Need to See the Layout
When arranging multiple patterns or checking the overall workspace, zoom out.
This helps you see how different parts are positioned relative to each other and gives you a better understanding of the complete layout.
The basic rule is:
Zoom in for details. Zoom out for layout.
Avoid moving patterns when you cannot clearly see what you are doing. Adjust the view first, then make the movement.
In other words:
Adjust your view before adjusting your patterns.

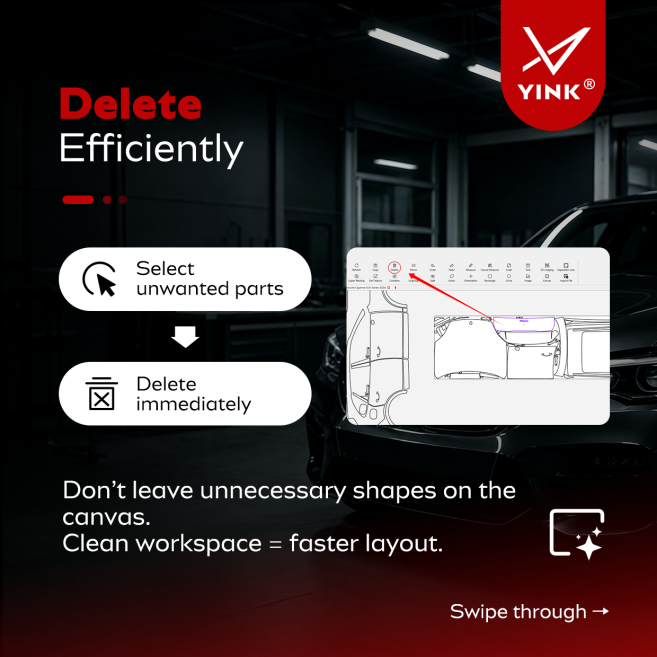

Tip 4 — Delete Unnecessary Parts as You Work
Good mouse control is not only about moving patterns.
It is also about keeping the workspace clean.
If you identify a vehicle part that is not required for the current cutting job, remove it instead of leaving it on the canvas.
The operation is simple:
Select the unwanted part → Delete
Do this as soon as you know the part is unnecessary.
Leaving unused patterns on the canvas can make the workspace look more crowded and make later layout work harder to understand.
A cleaner canvas gives you fewer shapes to manage and makes it easier to focus on the patterns you actually need.
So remember:
If you do not need it, remove it before continuing the layout.
Individual Pattern vs. Entire Canvas: Know What You’re Moving
One of the most useful things for a new YINK Design Center user to understand is the difference between moving a pattern and moving the overall view.
These actions may sound similar, but they serve different purposes.
| What You Want to Do | Mouse Action |
|---|---|
| Select an individual pattern | Left-click the pattern |
| Move an individual pattern | Select it and drag with the left mouse button |
| Move the overall canvas view | Press and hold the mouse wheel, then move the mouse |
| Zoom in or out | Scroll the mouse wheel |
Knowing which action you need can prevent unnecessary pattern movement.
For example, if the pattern you need is outside the visible area, move the canvas view instead of changing the position of other patterns just to reach it.
If you need to reposition one specific vehicle part, select and move that pattern instead.
Choosing the right mouse action makes the workflow much more straightforward.

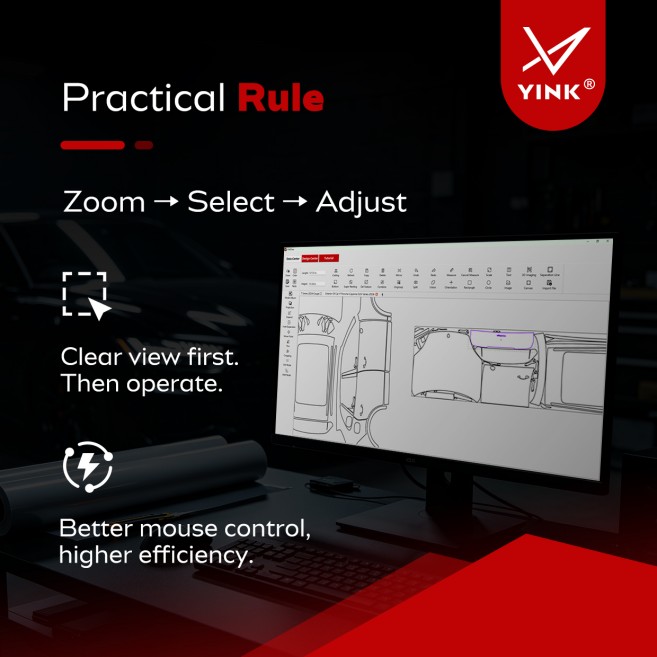

A Better Mouse Workflow in Design Center
You do not need to memorize many complicated mouse techniques.
For everyday work in Design Center, a simple sequence is enough:
1. Zoom
Adjust the view so you can clearly see the area you are working with.
2. Look
Before moving anything, understand what is currently on the canvas and where you want the pattern to go.
3. Select
Use the left mouse button to select the pattern you actually want to work with.
4. Move
Drag the selected pattern toward its intended position. Avoid unnecessary repeated movements.
5. Adjust
Once the main position is established, make smaller adjustments if needed.
This gives you an easy workflow to remember:
Zoom → Look → Select → Move → Adjust
The important part is the order.
Do not move first and figure things out afterward.
See clearly first, then operate.
Why These Small Mouse Habits Matter
None of these operations are complicated.
But when you work with a complete vehicle template containing many different parts, small repeated actions can add up.
If you constantly move patterns back and forth, work at the wrong zoom level, or leave unnecessary shapes on the canvas, the workspace can quickly become harder to manage.
Better mouse habits help keep the process more controlled.
You know when to move a pattern.
You know when to move the overall canvas.
You know when to zoom in for details and when to zoom out for the overall layout.
And when a part is no longer needed, you remove it instead of allowing the workspace to become increasingly crowded.
The result is not a completely different workflow.
It is simply a cleaner way to perform the same everyday operations.
Conclusion
Working efficiently in YINK Design Center starts with some very basic controls.
Remember these four habits:
→ Move patterns with purpose instead of repeatedly dragging them.
→ Hold the mouse wheel to move the overall canvas view when needed.
→ Zoom in for details and zoom out for layout.
→ Delete unnecessary patterns to keep the workspace clean.
You can summarize the workflow with one simple rule:
Zoom → Look → Select → Move → Adjust
Good mouse control is not about moving faster.
It is about reducing unnecessary movements and making each action more deliberate.
Clear view first. Then operate.
FAQ
How do I move the whole canvas in YINK Design Center?
Place the cursor anywhere in the workspace, press and hold the mouse wheel, and then move the mouse to reposition the canvas view.
How do I move an individual PPF pattern?
Left-click the pattern to select it, then drag it toward the position you want.
When should I zoom in or zoom out?
Zoom in when you need to see details or edges more clearly. Zoom out when you are arranging patterns or need to understand the overall layout.
